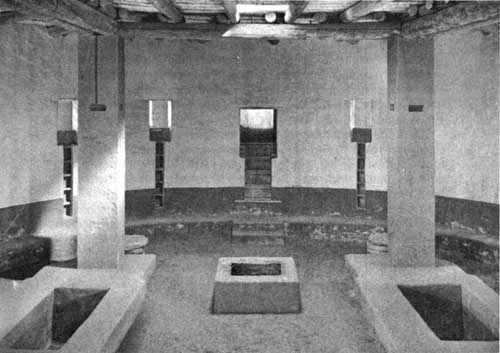

Reconstructed interior of the Great Kiva.

The Aztec Ruins Today (continued)

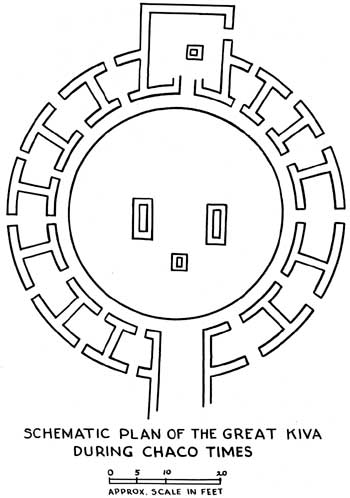

The Great Kiva, or House of the Great Kiva as Morris called it, is centrally located in the south side of the plaza. It is essentially circular in form and has two distinct parts. The inner part—the kiva proper—has a floor about 8 feet below the surface. At ground level, and surrounding this inner section, is an outer circle of 14 arc-shaped rooms. Twelve of these are essentially similar, but the other two are markedly different. One is merely an open passage about 3-1/2 feet wide which leads directly from the plaza to the head of the south stairway. The other is a large rectangular alcovelike structure on the north side of the kiva proper, with a stairway leading up into it from the kiva floor. On the north and west sides of this alcove, there is a low benchlike structure around the inner wall, and on the south side are what appear to be a piece of a wall and two rectangular masonry blocks. Toward the center back portion of the alcove is another low square masonry structure which may have been an altar. When excavated, this latter structure had burned poles embedded in the north side as though it once had a small roof or some kind of entablature over it.

The kiva proper is 41 feet 3-1/2 inches wide at floor level and 48 feet 3-1/2 inches wide at a height of 3 feet above the floor, This difference is caused by two benches or concentric rings which completely encircle the kiva base. At the north end three masonry steps led to the second bench, which at this point formed a fourth step in the stairway leading to the alcove. Above this, another masonry step was surmounted by five sets of double juniper logs set in the sides of a recess, with an average rise of 9-1/2 inches each. These logs formed the final steps leading from the kiva floor into the north alcove.

Originally there had also been a stairway on the south side, leading to the small exit at that point. Some time while the kiva was in use, these stairs had been eliminated, the two benches had been filled in smoothly at that point, and the recess above had been partially closed. The modern wooden stairways at both these points have been placed there by the National Park Service for the convenience of visitors.

On the floor of the kiva are remains of the central altar or fire-pit, flanked on either side by two large rectangular stone-lined pits, the bottoms of which are well below the kiva floor. These pits, often referred to as foot drums, may have served at other times as hiding places for the shamans, or medicine men, who performed magical rites during ceremonies.

Surrounding the kiva at ground level are 12 similar arc-shaped chambers of varying dimensions, which represent components of the building as last used. Some time during one or another of the several alterations made by the Indians on the Great Kiva, every door from the plaza into these peripheral chambers was sealed with masonry. The floor of the rooms was adobe, without much sign of use, and the quantity of gypsum found by Morris indicates they may have been painted white.

Once the outer doors were sealed, entrance was doubtless by way of the niched vertical stairways in front of each room, About 10 inches from the top bench, in front of most of the alcove rooms, Morris found a slot 8-1/2 inches wide and 8 inches deep which continued to the top of the wall. About a foot apart in each niche, were two round juniper sticks, laid side by side with their ends extending into the masonry. On the east side of the kiva, the veneer facing of the wall had fallen, and it could not be positively determined if these alcove rooms also had similar slot stairways in front of them. If they did not, the rooms would have been non-functional in connection with the kiva proper, and therefore the present-day restoration shows them correctly.

That the Great Kiva was originally roofed was determined by Morris' finding the remains of four rectangular columns, counter sunk below the level of the kiva floor and composed of alternating courses of masonry and wooden poles. Each course of wooden poles was laid at right angles to the alternating one below. Each column was supported by three thick circular sandstone blocks, evidently to prevent the weight of the columns, and the roof they supported, from pressing them down into the soft ground or spreading out the footings. In the excavation of the kiva fill Morris also found many pieces of charred timbers, so that although we do not know the exact method of roofing the kiva, one method which the Indians could have used has been duplicated in the modern reconstruction. Evidently the kiva burned and was then abandoned.
