Geological Survey Professional Paper 554—D Cenozoic Volcanic Rocks of the Devils Postpile Quadrangle, Eastern Sierra Nevada California

MICROSCOPIC PETROGRAPHY

Data obtained from the petrographic study of the volcanic rocks are recorded in table 2. Percentages of constituents are based upon visual estimates obtained from thin-section study and are little more than rough approximations. The percentages, however, can be effectively used to distinguish major and minor constituents and to reveal the large proportion of indeterminate material occult in the groundmass of most of the rocks. Minerals listed in groups of two or more are given in order of decreasing abundance. In most specimens range in anorthite content of the plagioclase was determined from twinning relationships. Olivine is typically magnesium rich.

TABLE 2.—Petrographic summary of the volcanic rocks
[An, anorthite; n, refractive index; Fa, fayalite]

CHEMICAL DATA

Table 3 presents chemical analyses and norms for seven samples of volcanic rock from the Devils Postpile quadrangle and one from the Mount Morrison quadrangle.

TABLE 3.—Chemical analyses and norms of the volcanic rocks
[Analyses by the rapid method of Shapiro and Brannock (1956)]

D—399e. At outlet of Lake Mamie, Mammoth Lakes basin.

D—611a. On small ridge half a mile northeast of bench mark 7607 in Snow Canyon, King Creek.

D—515. On Boundary Creek just below John Muir trail southeast of Reds Meadow.

D—801e. On slope one-quarter of a mile northeast of bench mark 8425 along road southeast of Agnew Meadows.

D—800. Summit of Two Teats.

D—961. On northwesternmost spur of Mammoth Mountain at 10,000-ft elevation.

M—340. One-quarter of a mile north of Mammoth Rock (in Mount Morrison quadrangle, half a mile east of Devils Postpile quadrangle boundary).

M—929a. One-quarter of a mile west of quadrangle boundary along Deadman Creek.

¹ Analysts: P. L. D. Elmore, S. D. Botts, and I. H. Barlow.

² Analysts: L. B. Beatty and A. C. Bettiga.

³ Analysts: K. E. White, P. L. D. Elmore, P. W. Scott, and S. D. Botts (from Rinehart and Ross, 1964, table 9).

⁴ Quantitative spectrographic analysis (63MS—60).

While only the Cenozoic volcanic rocks of the Devils Postpile quadrangle are described in this report, the volcanic rocks of both the Devils Postpile and Mount Morrison quadrangles (an area we call the Mammoth Lakes area) overlap in time and space and are here considered part of a consanguineous suite which has alkalic affinities, at least in the mafic rocks of the suite. The nature of this suite is illustrated by a Peacock (1931) variation diagram (fig. 2). The alkali-lime index, approximately 54, places the suite in the alkalic-calcic type. Alkalic affinities also are well shown at the mafic end of the series, where the Rittmann p values are less than 55 (alkaline <55 <calc-alkaline; Rittmann, 1953), and the rocks are trachybasalt and trachyandesite (table 3) according to Rittmann's classification. Figure 3 further illustrates the alkalic tendencies of the suite at its mafic end, as alkalic rocks typically fall within the undersaturated field of silica-differentiation-index plots (Thornton and Tuttle, 1960).

FIGURE 2.—Variation diagram of the Mammoth Lakes volcanic suite showing classification according to the "alkali-lime index" (percentage of Si2 at which Na2O+K2O=CaO) of Peacock (1931). D samples are from table 3; M—1 is a rhyolite from the nearby Mono Craters (R. A. Loney, written commun., 1965); the other M samples are from Rinehart and Ross (1964, table 9).

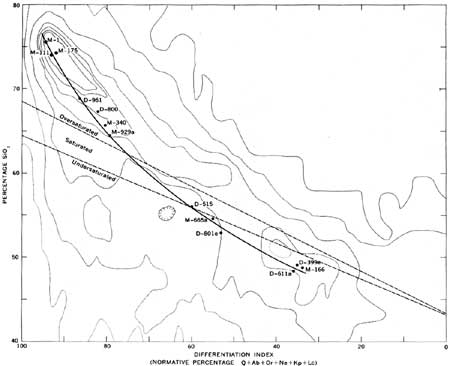

FIGURE 3.— "Differentiation trend" for the Mammoth Lakes volcanic suite as determined by utilization of the "differentiation index" of Thorton and Tuttle (1960). Background contours indicate frequency distribution of the silica-differentiation-index values for 5,000 analyses in H. S. Washington's tables (from Thornton and Tuttle, 1960). Sample sources listed in figure 2. (click on image for an enlargement in a new window)

In order to extrapolate from data of the few chemical analyses, the rapid-fusion technique described in Rinehart and Ross (1964) was used to obtain estimates of percent silica from a large number of specimens. Available chemical analyses cover a range in silica content sufficient to establish a reasonably definitive silica refractive-index curve for the Mammoth Lakes suite (Huber and Rinehart, 1966). This curve, shown in figure 4, is a slight modification, based upon additional data, of an earlier version (Rinehart and Ross, 1964). The rapid-fusion techniques used were the same as described in these two earlier reports.

FIGURE 4.—Silica-refractive-index diagram showing curve established for volcanic rocks of the Mammoth Lakes area, Same sources as listed in figure 2. The positions of M—111 and M—175 were transposed in Rinehart and Ross (1964).

The data obtained from refractive-index determinations are in figure 5, which gives an indication of the average percent silica as well as the general range in percent silica for the map units indicated. (See pl. 1 for geographic plot of silica distribution.) The variation within some of the map units is extreme but may be in part explained by the probability that the units represent more than one eruptive cycle. The significance of this variation is considered later in discussions of the individual map units.

FIGURE 5.—Range in percentage of silica of some of the mapped volcanic units as inferred from refractive indices of fused samples, Percentage of silica is projected from figure 4. Each dot represents one sample; some samples were collected a short distance into the Mount Morrison quadrangle, Circled dots indicate chemically analyzed samples. The rock classification used in this report is also shown. (click on image for an enlargement in a new window)
